Garri sieving machine

Garri sieving machine application:

Except garri production, this vibration sieve also can be used for cassava starch, cassava flour sieving, it is mainly used to sieve the final product that has been dried, and those starch, garri or cassava flour will be packed. Garri sieving machine can help to get more fine and evenly finished product. Our garri sieving machine capacity can be small and large as your select. It is kind a special screening machine with high precision and high efficiency. Different size garri particles and powder materials could be separated continuously by the garri sieving machine through screens in different mesh, therefore, it can meet all kinds of requirements.

garri sieving machine

Garri sieving machine structures

This garri sieving machine also named vibration sieve, it's very popular with our customer, used in the garri processing plant for garri sieving to get high quality garri products. This garri sieving machine is important for improve the garri quality grade, made by carbon steel+material content part stainless steel or full stainless steel as your requests.

Doing Company garri sieving machine technical parameters:

Model DYS-500 DYS-600 DYS-800 DYS-1000 DYS-1200 DYS-1500 DYS-1800 DYS-2000
Diameter(mm) 500 600 800 1000 1200 1500 1800 2000
Screen diameter(mm) 430 530 730 900 1100 1400 1700 1900
Layer 1-5
Mesh 2-500
RPM 1460
Feeding size(mm) <20 <20 <30 <30 <50 <50 <50 <50
Power(kw) 0.25 0.25 0.55 0.75 1.1 1.5 2.0 3.0

The structures and working principle of garri sieving machine:

Our garri sieving machine is composed by vertical motor, and eccentric weight installed at two ends. We can produce horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter can be ranged from 400mm to 2000mm, with single or multiple screening decks(1-5 layers). Material can be divided into all carton steel, contact part stainless steel and all stainless steel. Our garri sieving machine is a vertical-motor system, with eccentric hammers being installed on the top and the bottom of the machine, where the vibration motor acts as the vibratory source. The direction of the eccentric hammers may change its rotational mode either in horizontal, vertical and inclined movement onto the sieving screener surface.

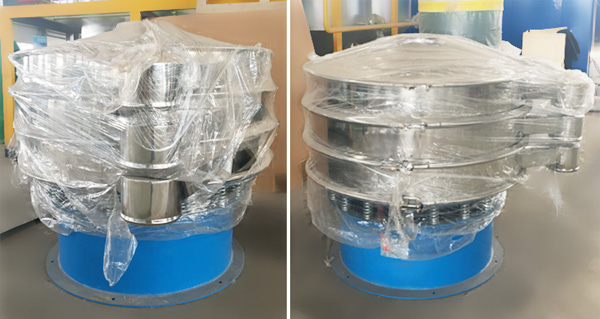

The garri sieving machine packaged prepare to send to Nigeria

The features of DOING garri sieving machine:

(1). Garri sieving machine has high performance and works efficiently, so it can help save labor.

(2). Low noise, simple structure, so our garri sieving machine is easily to be maintained and moved.

(4). It can be operated continuously, contribute to garri regular processing.

(5). Our garri sieving machine can designed depends on your requirements, and deal with different quantity.

(6). Our garri sieving machine screen mesh is durable, with long service life.

(7). The screen mesh can be changed easily in a short time.

(8). The material can be made of stainless steel, so it can meet hygiene requirements

garri sieving machine

Garri sieving machine manufacturing and packing

In short, our garri sieving machine is one of excellent machines produced by DOING Company. Doing Company also provides complete garri production plant, cassava starch processing line, cassava flour processing machine. We have undertaken to complete a number of major engineering and technical service abroad, equipped with modern installation equipment and the most professional installation team with rich experience, we guarantee the stable running of the garri sieving and all projects.
