Fine fiber sieve

Fine fiber sieve used for separating fine slag during the cassava starch production:

Fine fiber sieve is an ideal equipment for separating fine slag from starch slurry during starch processing. The processing principle of root crop starch (such as cassava, potato, sweet potato, etc.): the process of starch production is a physical separation process, which separates the starch from cellulose, protein and inorganic substance. In the process of production, the starch is dissoluble in cold water. The specific gravity is larger than water, the starch is kept separate from the suspension of water by our machine, so as to achieve the purpose of reclaiming starch.

cassava starch processing machine

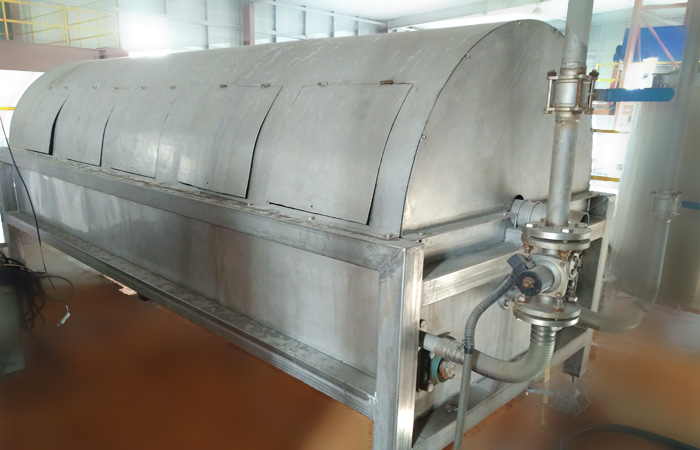

DOING fine fiber sieve

The technological process of starch production is designed depending on the following six stages: cleaning, breaking, sieving, enrichment, purification, dehydration and drying. In particular, the crushing and screening section is unique to multistage crushing, filtration and extrusion. Fine fiber sieve has the advantages of low energy consumption, high starch extraction rate and good quality of starch, which improves the efficiency of the production line and the extraction rate of starch production, its an important machine for cassava starch production, help to improve the cassava starch quality.

The description of fine fiber sieve:

1. All parts in contact with material is stainless, no material corrosion.

2. Automatic control system and high injection pressure.

3. The appearance of the fine fiber sieve adopts advanced surface treatment technology and resistance of oil and dirty.

4. Large capacity, low power configuration, stable operation, easy installation and maintenance.

cassava starch production plant

Fine fiber sieve used in cassava starch production plant

Work principle of fine fiber sieve:

Starch from the starch pump enters the feed end of the drum through the feed inlet. The drum consists of a bottom network skeleton and a surface network, then the roller is rotated at a constant speed under the drive of the transmission system, so that the material is going forward the screen surface of the roller. Under the rinsing effect of the spray water, small granule starch is entered into the slurry collection through the surface net. The fine slag stay on the screen surface and discharge from the slag outlet, so as to achieve the purpose of separating the fine slag.

The fine fiber sieve is made up of roller, through body, bracket, upper cover, transmission system, feeding system, back washing system and sprinkling system.

Doing Company fine fiber sieve technical parameters:

Model Drum diameter(mm) Main shaft speed(r/min) Power(kw) Dimension(mm) Weight(t) Capacity(t/h) Roller Length(mm)
DYXS-100 1005 21 3.0 4300*1380*1610 2.5 2-4 3300
DYXS-2*95 950 21 2.2*2 6000*1550*2300 3.8 3-6 5000

The drum is partially supported by the drum bracket and auto-centering. In the process of separation of fine slag, there is a back flushing system on the outside of the roller. The fine fiber sieve adopts the front and back washing system to ensure the permeability of the screen and the continuous operation of the equipment.

The machine is simple in structure, stable and reliable in operation, heavy in handling capacity and simple in maintenance. The transmission adopts chain drive, which is simple and convenient to maintain. Besides, the operation is simple and easy to learn.

The low-speed horizontal fine fiber sieve developed by our company is all made of stainless steel woven density mesh, which is conducive to a better separation effect of fine slag. Unlike the centrifugal sieve, the fine fiber sieve is made of "graticules", which complements the slender mesh of the centrifugal screen.
